Select how your club connects your kit to the internet:


OPTION 1: SIM CARD CONNECTION


Step 1: Ensure sufficient mobile data for streaming. We recommend an unlimited data plan where possible. Otherwise, you can estimate your data needs based on your expected streaming volume - as a guide, a 6-hour stream uses 5 to 10GB of data. Be sure to also check your provider's coverage map to confirm your grounds are within a strong $G coverage area.

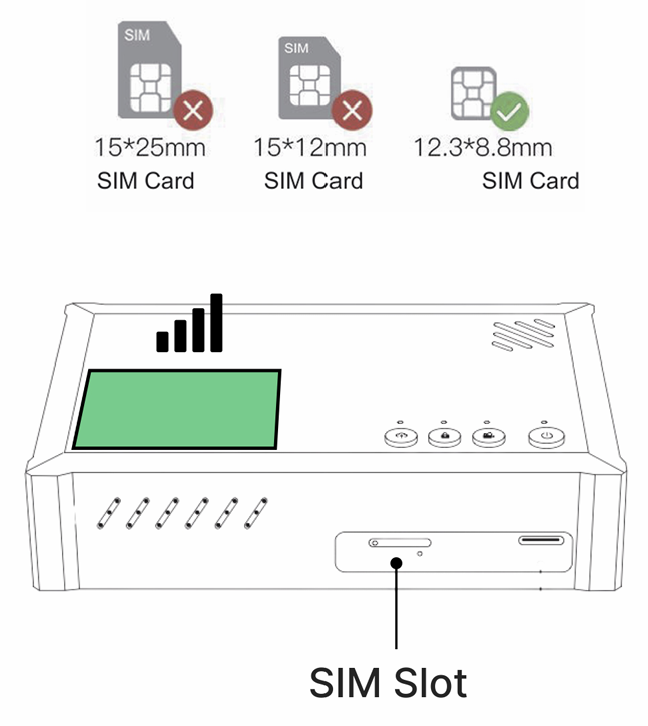

Step 2: Insert a nano SIM card into the encoder's SIM slot


Step 3: Screw on the antennas (2).


Optional: If only using one antenna (1), make sure you screw the antenna into the correct port. If using SIM card, screw into the 4G port. If using WiFi, screw into the WiFi port.



Step 4: Press the power button on the encoder for 5 seconds


Step 5: Network symbol appears on the preview screen when connected


Step 6: Unscrew the antennas (2). You’ll reattach them later during the kit set up process.



OPTION 2:  WIFI CONNECTION


Step 1: Press the power button on the encoder for 5 seconds


Step 2: Screw on the antennas (2)

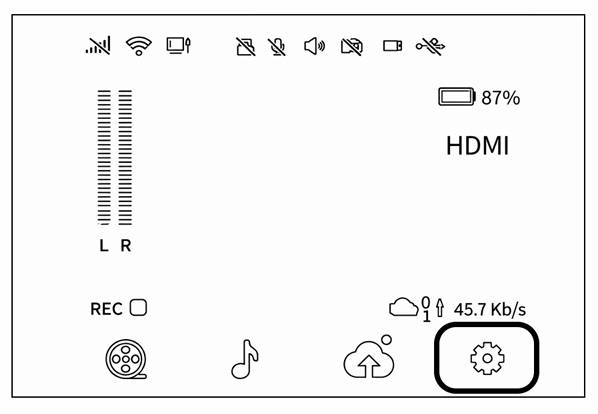

Step 3: On the preview screen, tap Settings

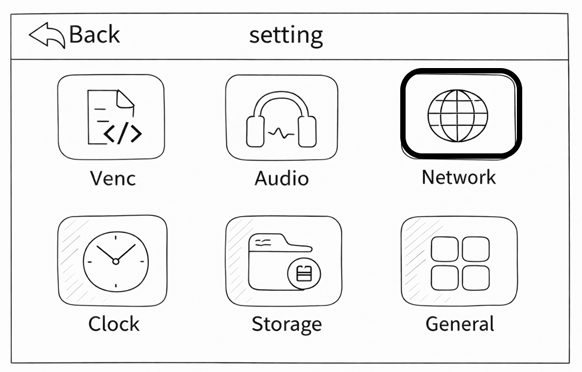

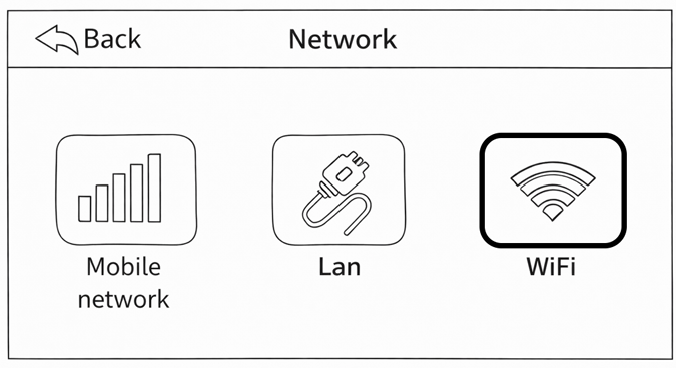

Step 4: Select Network, then tap WiFi

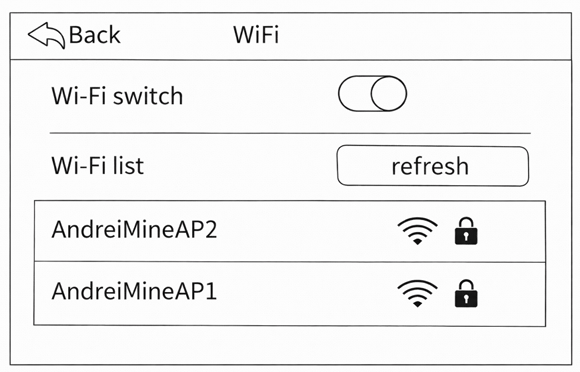

Step 5: Find and select your WiFi network from the list

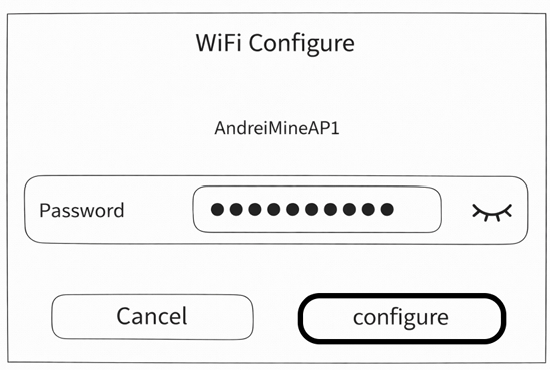

Step 6: Enter the password and tap Configure


Step 7: Network symbol appears on the preview screen when connected


Step 8: Unscrew the antennas (2). You’ll reattach them later during the kit set up process.








OPTION 3:  ETHERNET CONNECTION



Step 1: Press the power button on the encoder for 5 seconds

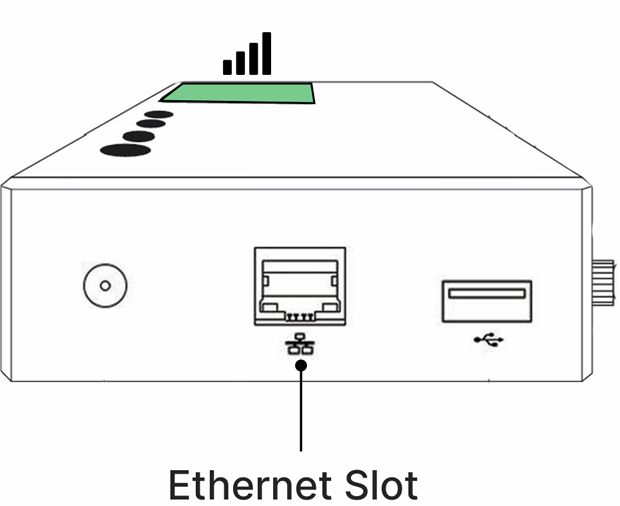

Step 2: Insert CAT5/6 cable into Ethernet slot


Step 3: Network symbol appears on the preview screen when connected
